RS19 Thin valve knob 8 Positions(Customized Product)

Series：

Format：See the following profile

Specifications　　

Encoder model:	RS19 series
name:	RS19 Thin valve knob
Main specifications:	Working temperature: -40℃~85℃； Mechanical rotary angle: 270°; Positioning angle: 0°, 90°, 120°, 150°, 180°, 210°, 240°, 270°; Number of positions: 8; Detent torque: 300±100gf.cm; Stop strength: ≥ 3Kgf.cm; Rotational life: 30,000 cycles Min
Features:	With the customer's valve body structure to achieve positioning feel, no signal output function;
Application areas:	Applied to all kinds of valve body structure or need to locate the feel of home appliances;

RS19 Product specification

ONE、MECHANICAL CHARACTERISTIC

1. Detent torque: 300±100gf.cm
2. Number of positions: 8
3. Positioning angle: 0°, 90°, 120°, 150°, 180°, 210°, 240°, 270°
4. Stop strength: ≥ 3Kgf.cm

TWO、ENDURANCE CHARACTERISTIC

1. Rotational life: 30,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

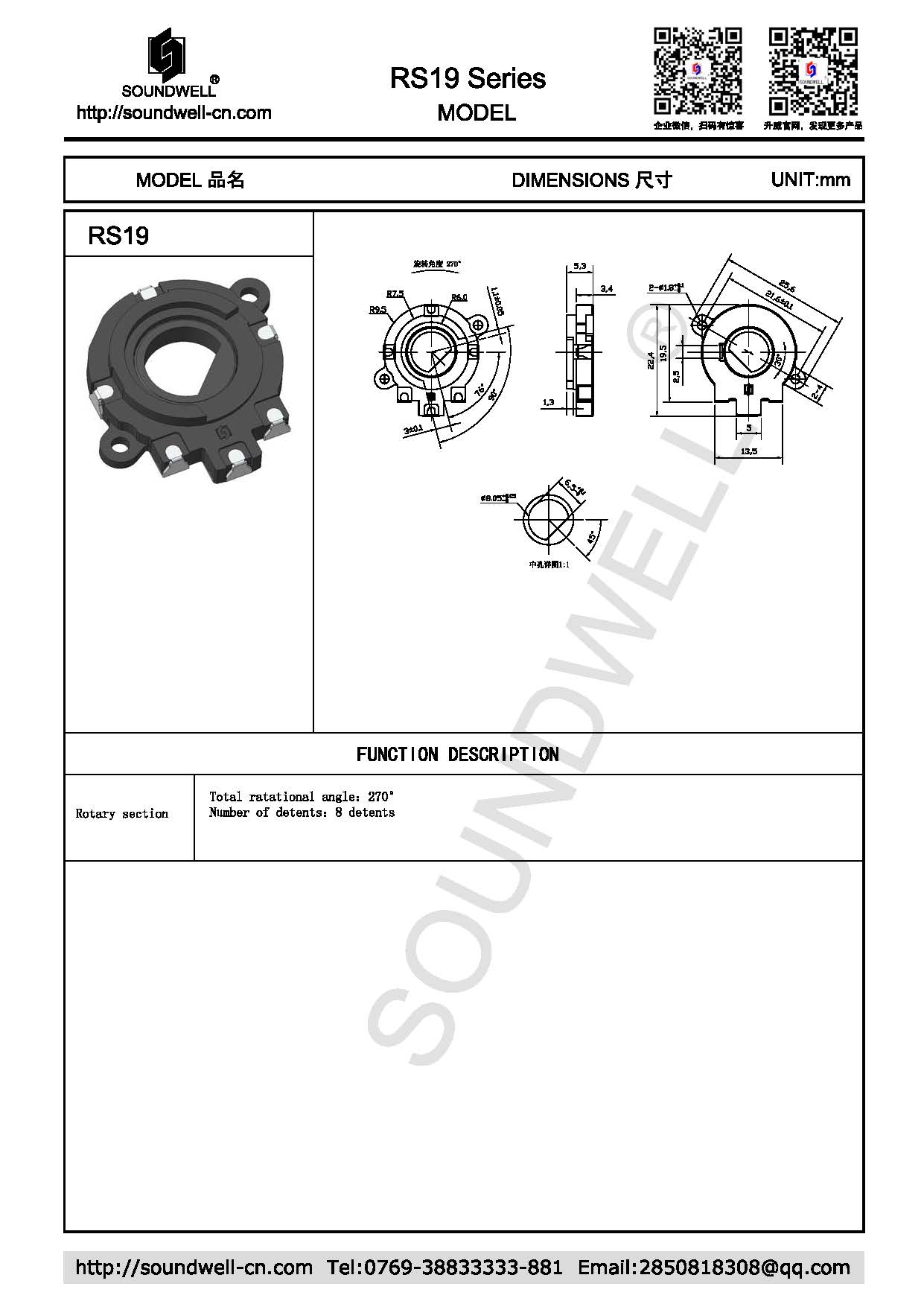

/uploads/images/RS19-P.jpg

RS19 Thin valve knob 8 Positions(Customized Product)
