RS1706 Insulated Shaft Rotary Route Switch

Soundwell Product

Soundwell Electronic Products (Guangdong) Co., Ltd.

TEL：+86(769)-38833333-881
Fax：sw@soundwell-cn.com
MAIL：soundwell868@soundwell.cn
Address：Guangdong Province Dongguan city Tangxia Town Phoenix Gang Sheng Wei Industrial Park

RS1706 Insulated Shaft Rotary Route Switch

Series：

Format：See the following profile

Specifications　　

Switch model：	RS1706 series
Applications：	Microwave oven, washing machine and other white household appliances, can also be used in multimedia audio/power amplifier, medical equipment.
Product Features:	13 positions available with clear sense of clicks; Available in various shaft options;
Functions：	The main functions are function switching, speed control, temperature adjustment and so on.
Main Specifications:	Dimensions: 17mm Rated power: DC16V 0.3A Number of positions: 13 Contact resistance: 50mΩ Max Operating temperature: -10℃ ～70℃ Operating life: 50,000 cycles Min

RS1706 Product Specifications

ONE、MECHANICAL CHARACTERISTIC

1. Rotational torque: 100~400gf.cm
2. Step angle: 15°±3°

TWO、ELECTRICAL CHARACTERISTIC

1. Contact resistance: 50mΩ Max
2. Power rating: DC16V 0.3A
3. Number of detent: 13
4. Insulation resistance: 100M? 1 Minute at DC 100V
5. Dielectric voltage: 1 Minute at AC 100V

THREE、ENDURANCE CHARACTERISTIC
1. Rotational Life: 50,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

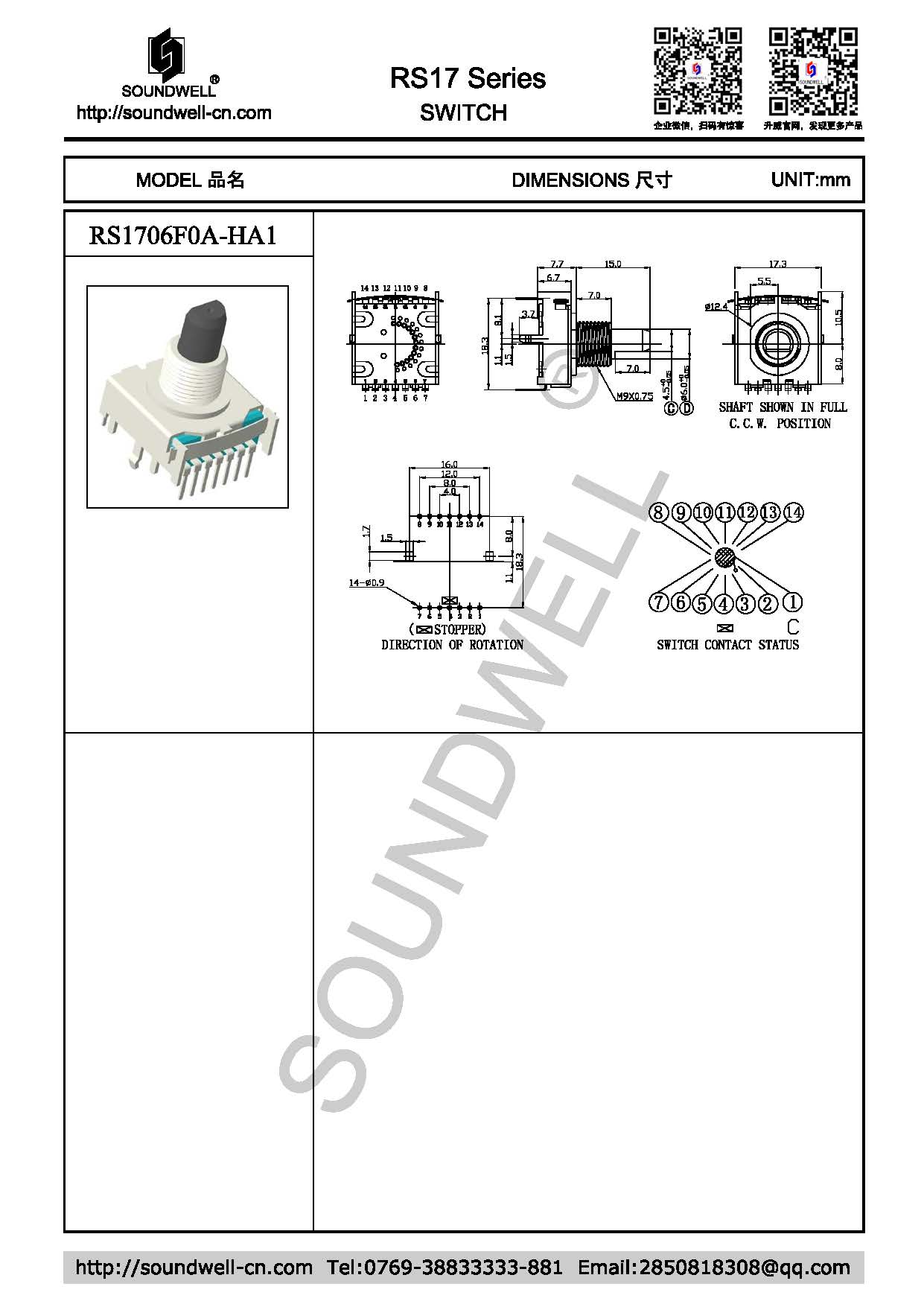

/uploads/images/RS1706-1.jpg
