MS14 Slide Switch

Series：

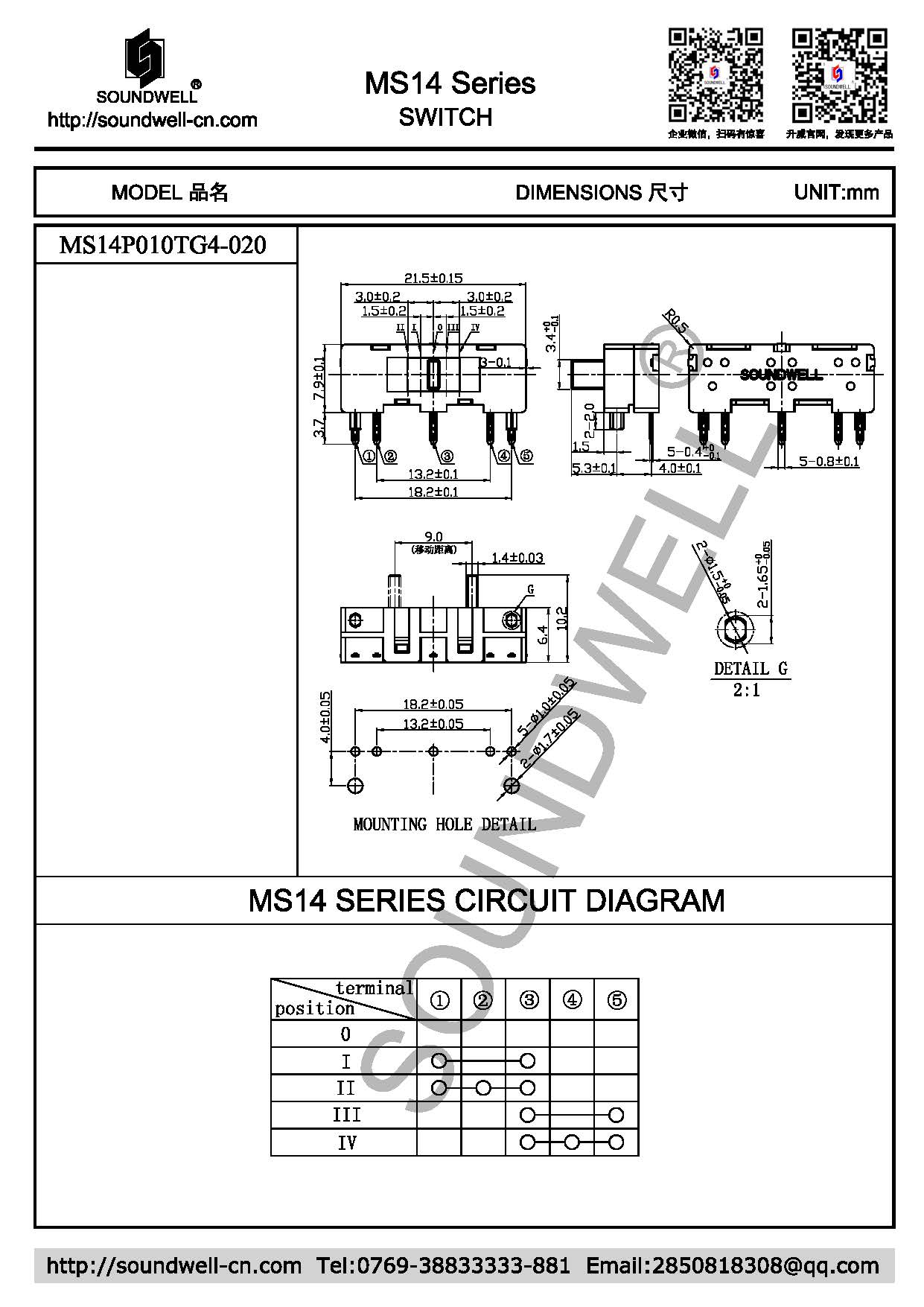

Format：See the following profile

Specifications　　

Switch model：	MS14 series
Applications：	Car sunroof switch, light switch and other related electronic equipment
Product Features:	Long life with high precision.
Functions：	It mainly plays a role in switching functions such as sunroof switch and light switch
Main Specifications:	Travel: 9mm Rated current: 50mA Rated voltage: DC 5V~14V Operating temperature: -40℃～90℃ Operating life: 100,000 Min

MS14 Product Specifications

ONE、MECHANICAL CHARACTERISTIC

1. Sliding torque: 50gf Max

2. Slide travel: 9mm

3. Lever Stop Strength: ≥3Kgf

4. Lever push-pull strength: ≥2Kgf

TWO、ELECTRICAL CHARACTERISTIC

1. Contact Resistance: 100mΩ Max

2. Maximum operating current: 50mA

3. Rated voltage: DC 5V~14V

4. Dielectric Voltage: AC 500V (50~60Hz) 1 minute

5. Insulation resistance: 100M? 60s±5s at DC 250V

THREE、ENDURANCE CHARACTERISTIC

1. Operating Life: 100,000 Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
