EC56 Hollow Shaft Incremental Encoder

Series：EC56

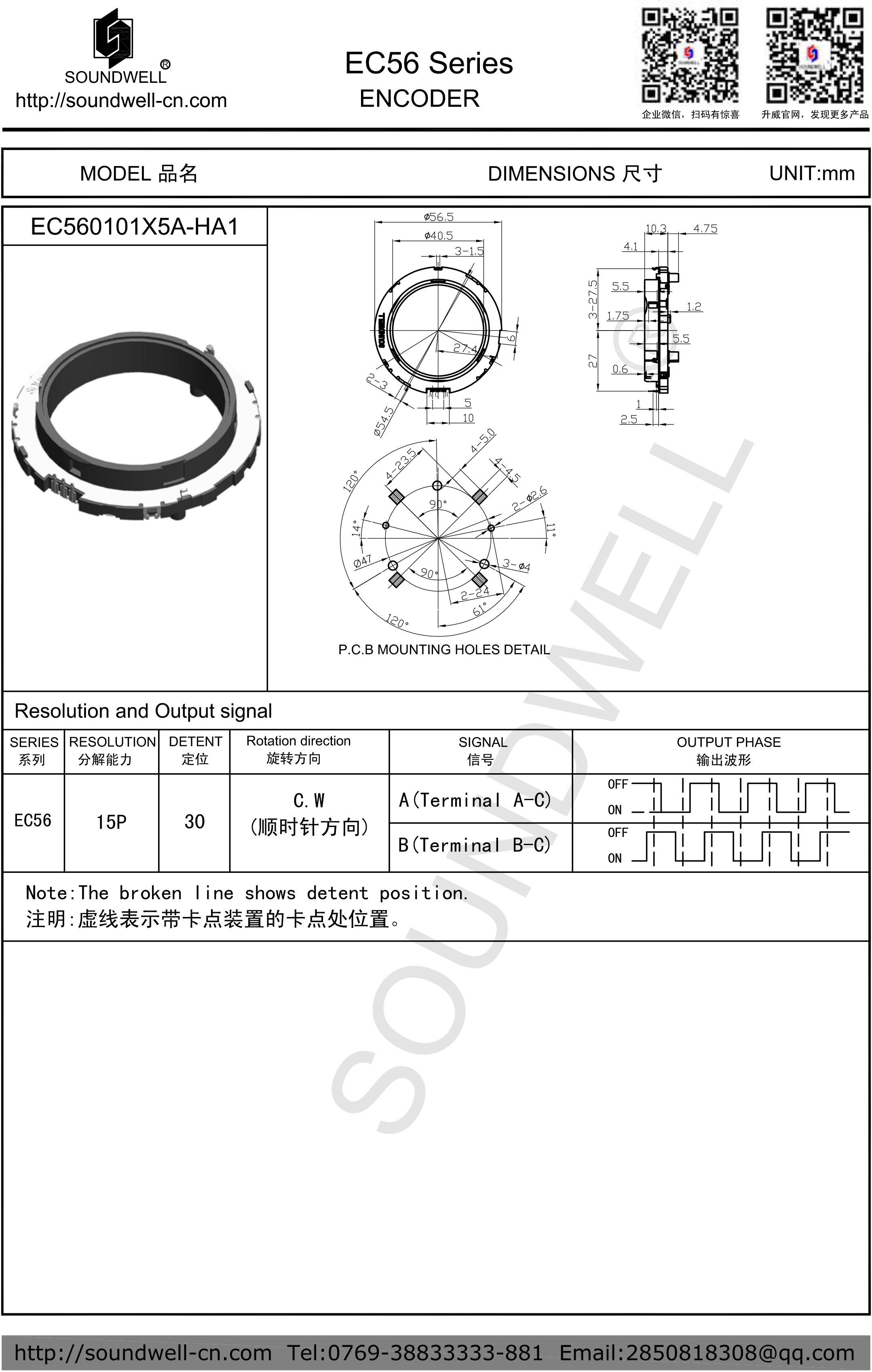

Format：See the following profile

Specifications　　

Encoder Model:	EC56-PA1 series
Name:	EC56 Hollow Shaft Encoder
Main Specifications:	Dimensions: φ56mm Rated voltage: DC5V 1mA Number of detent: 30 Pulses: 15 Operating temperature: -40°C~85°C Rotational life: 50,000 cycles Min
Features:	Low profile with long life; Smooth rotational feel and highly reliable performance; Hollow encoder to enable flexible design in the center ring.
Applications:	Household appliances, audio products and other related electronic devices; Mainly used to adjust volume, adjust temperature, and function switching.

EC56 Product Specifications

ONE、 MECHANICAL CHARACTERISTIC
1. Rotational torque: 50~200gf.cm
2. Number of detent: 30 (Step angle: 12°±3°)
3. Shaft play: 3°Max

TWO、 ELECTRICAL CHARACTERISTIC
1. Resolution: 15 pulses/360°
2. Phase difference: ≥4ms
3. Rated power: DC 5V
4. Insulation resistance: 10M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V

THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

Download EC56 Hollow Encoder.pdf
